2007-2020 Cadillac Escalade, Chevy Avalanche, Tahoe, Suburban, Yukon – 2.5″ Front & 1.25″ Rear Lift Kit #406012

Code: 406012

2007-2020 Cadillac Escalade, 2007-2013 Chevy Avalanche, 2007-2020 Tahoe & Suburban, 2007-2020 GMC – 6 lug, 2WD & 4WD, Coilover – 2.5″ Truxxx Front & Rear Lift Kit


In Stock


This Kit Fits:
2007-2020 Cadillac Escalade Awd

2008-2020 Cadillac Escalade Hybrid

2007-2020 Cadillac Escalade ESV Awd

2007-2020 Cadillac Escalade EXT Awd

2007-2013 Chevrolet Avalanche 2wd & 4×4

2007-2020 Chevrolet Tahoe 2wd & 4×4

2008-2020 Chevrolet Tahoe Hybrid

2007-2020 Chevrolet Suburban 2wd & 4×4

2009-2020 GMC Yukon Hybrid

2007-2020 GMC Yukon 2wd & 4×4

2007-2020 GMC Yukon XL 2wd & 4×4

This kit works on all GM SUV’s 2wd (4×2) & 4×4. This Truxxx lift kit increases the front height 2.5″ from stock (each pickup/SUV has a slightly different rake from the factory) and the rear 1.25” giving you the clearance you need to run larger wheels and tires. We designed the kit to keep the front strut centered in relation to all suspension components, maximizing life on critical front end parts and optimizing ride quality! The rear of the SUV is lifted using a steel spring spacer and maintaining the use of the stock or OEM length shocks!

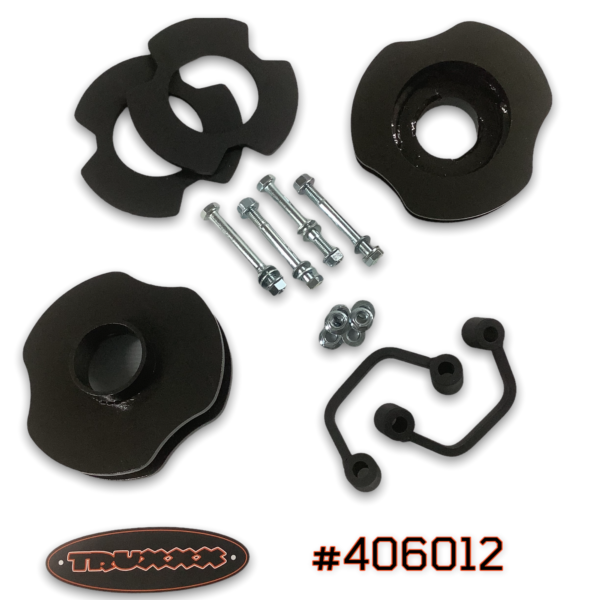

This Truxxx lift kit allows for 33″ tall tires to be installed when used on a stock offset style wheel. All of our kits are a direct bolt in, simple and easy to install and require no modifications to your vehicle. These kits retain the stock ride quality of your truck. Each kit contains two front strut lower ‘c’ brackets, 6 upper strut spacers, 2 rear spring spacers, all hardware needed, detailed instructions and complete alignment specs. Recommended installation time is approx 3 hours + alignment and a 33” tall tire are commonly used on a stock offset style wheel.

• 100% Mill Certified US and Canadian Steel, this kit is designed to last the life of your truck! Designed to retain the stock ride quality! • Aftermarket shocks are NOT required! • Alignment specs included! •

Additional information

Weight16.25 kg
Front Lift

Rear Lift



Vehicle Year

, , , , , , , , , , , , ,
